Description

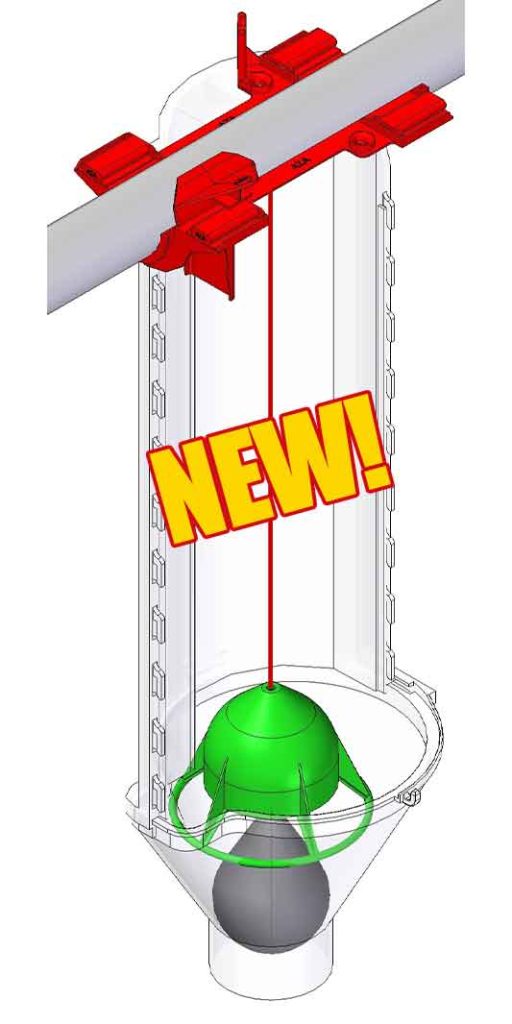

Innovative breakthrough and effortless ball lifting opening

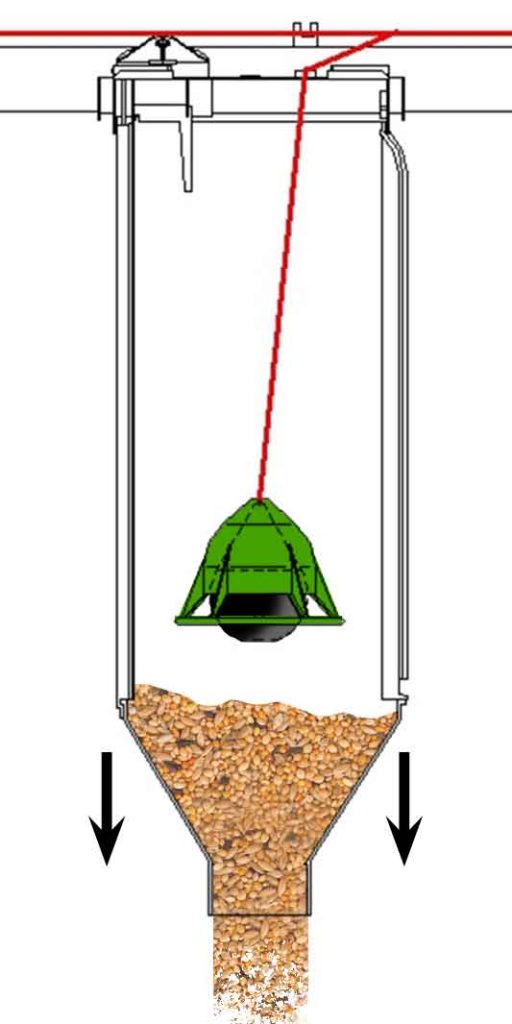

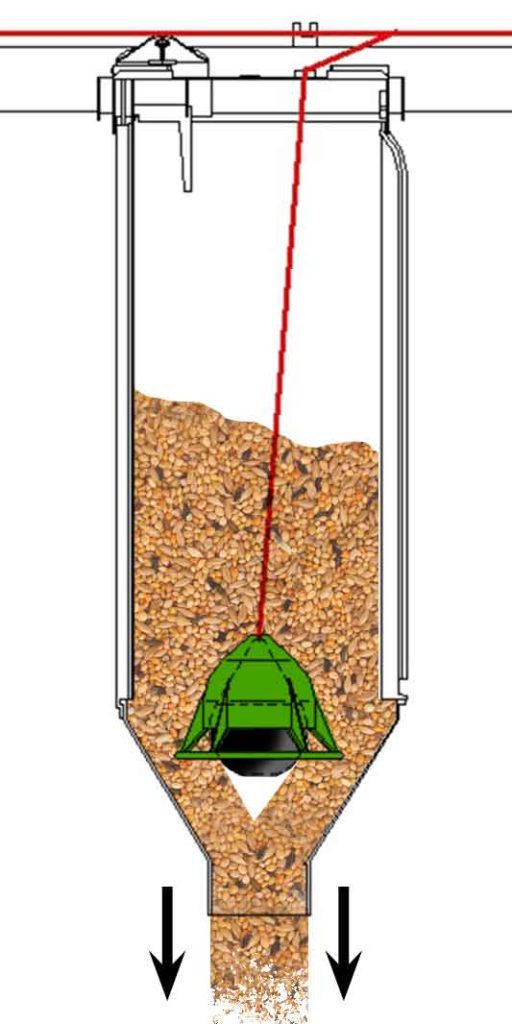

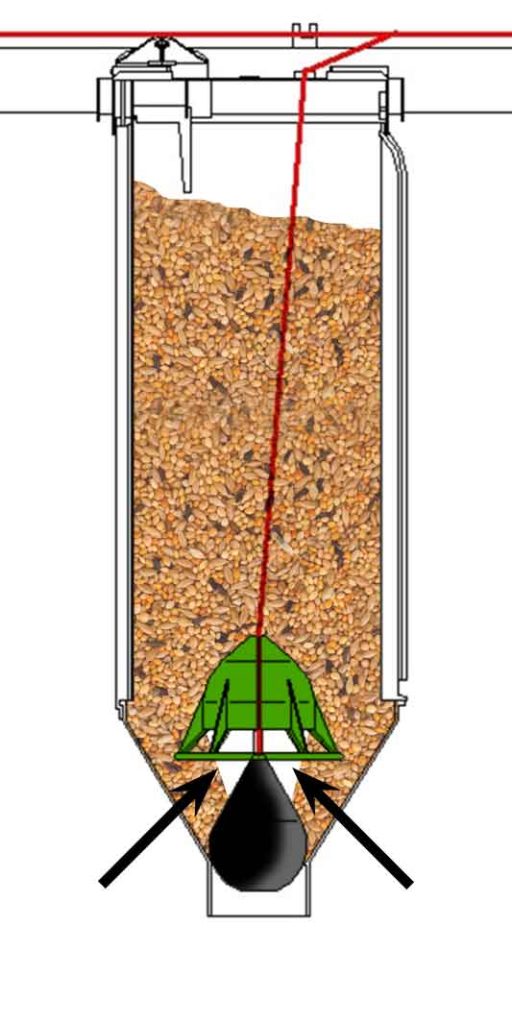

Even with a full dispenser, the lifting of the discharge ball is completely effortless, thanks to an easy solution that shields the ball against the weight of the feed above.
Technical data

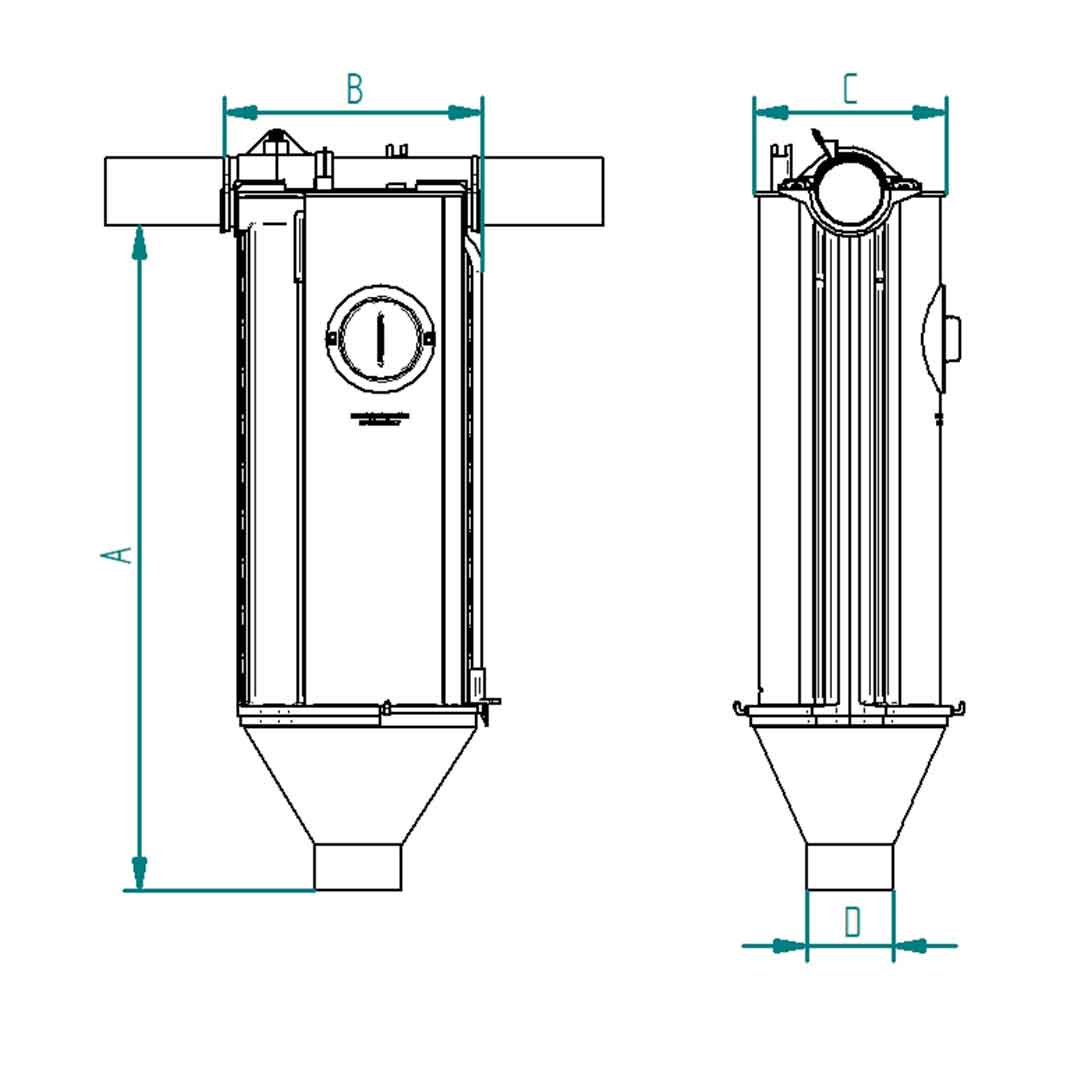

| Model | Dimensions A - B - C - (D Standard ext. Ø)* |
|---|---|
| 8 lt | 590 - 230 - 170 - Ø 76 mm |
*Other Ø available
Main features
Closer sliding around the tube to prevent feed residues building up, which can create problems in the future.

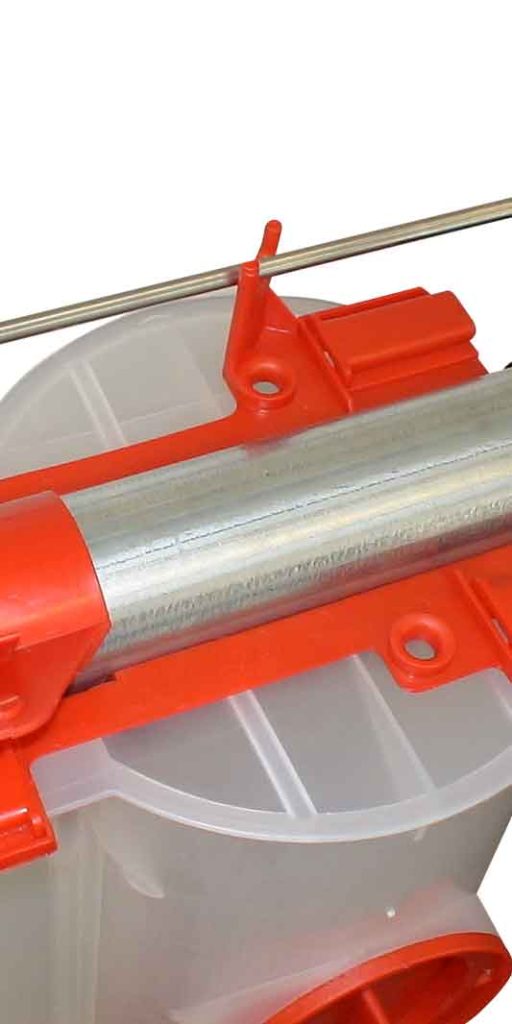

Possibility of installing the opening cable lengthwise or transversally to the conveying line.

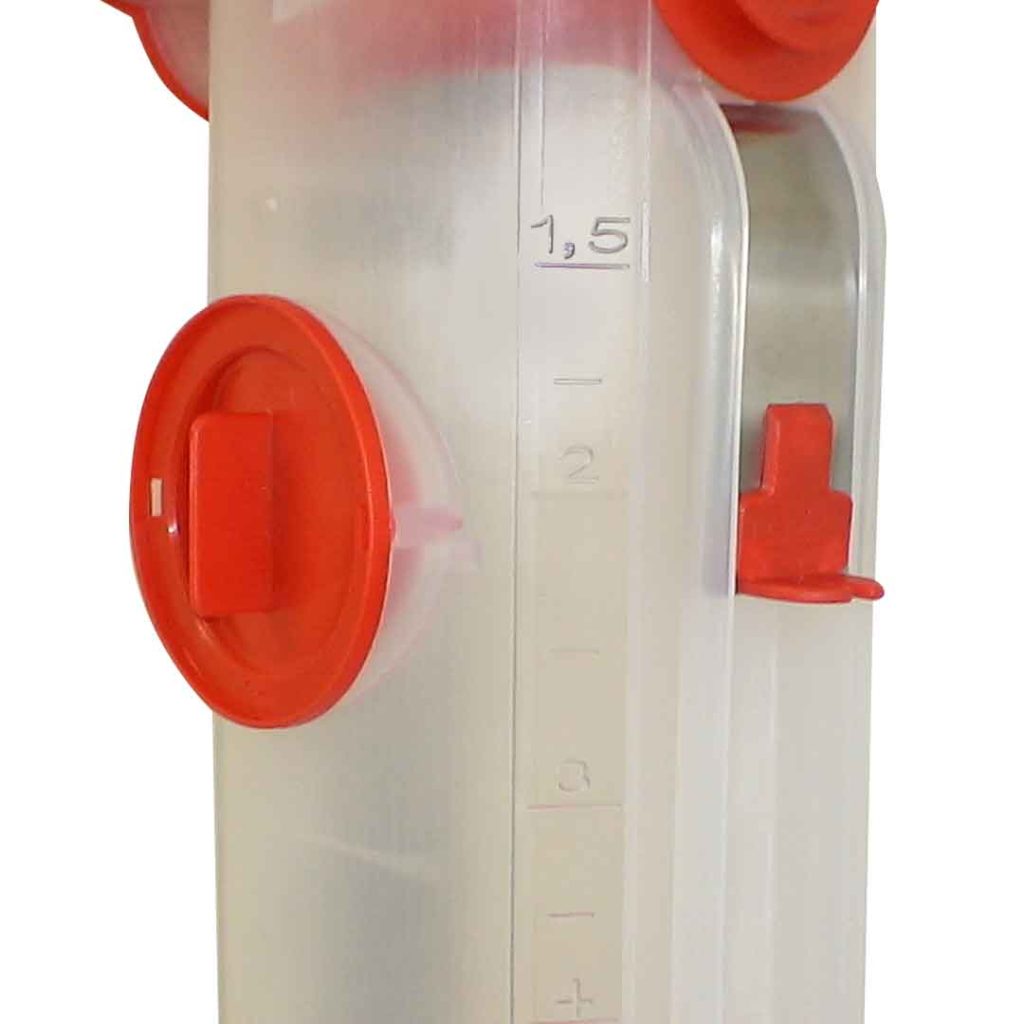

Stainless steel adjusting band rather than plastic for longevity.
Large inspection door.
Hook to hang the identification label of the sow.
Wide range of adaptors to reduce the funnel outlet size.
Models for systems 60-50- 48 mm.

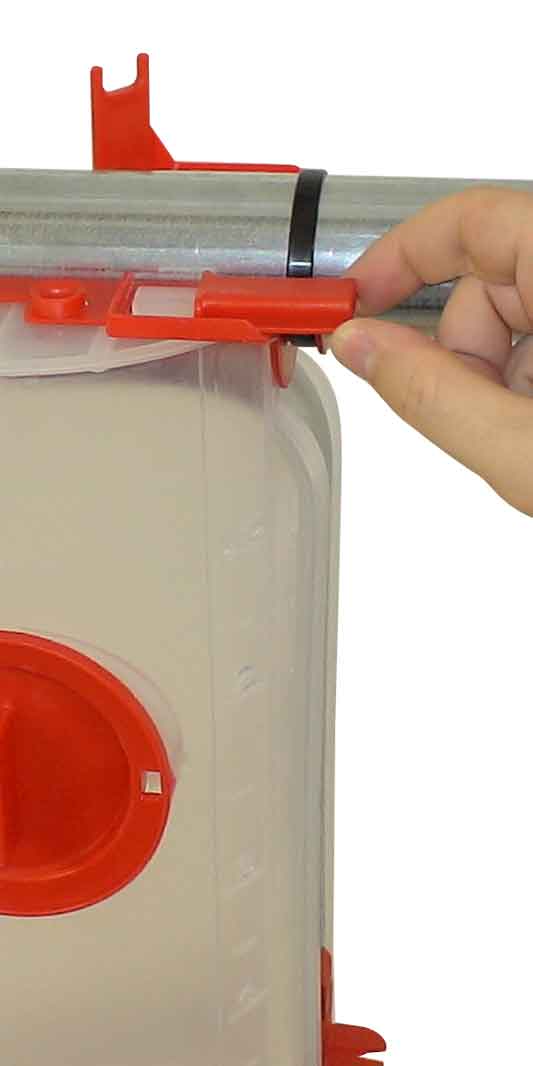

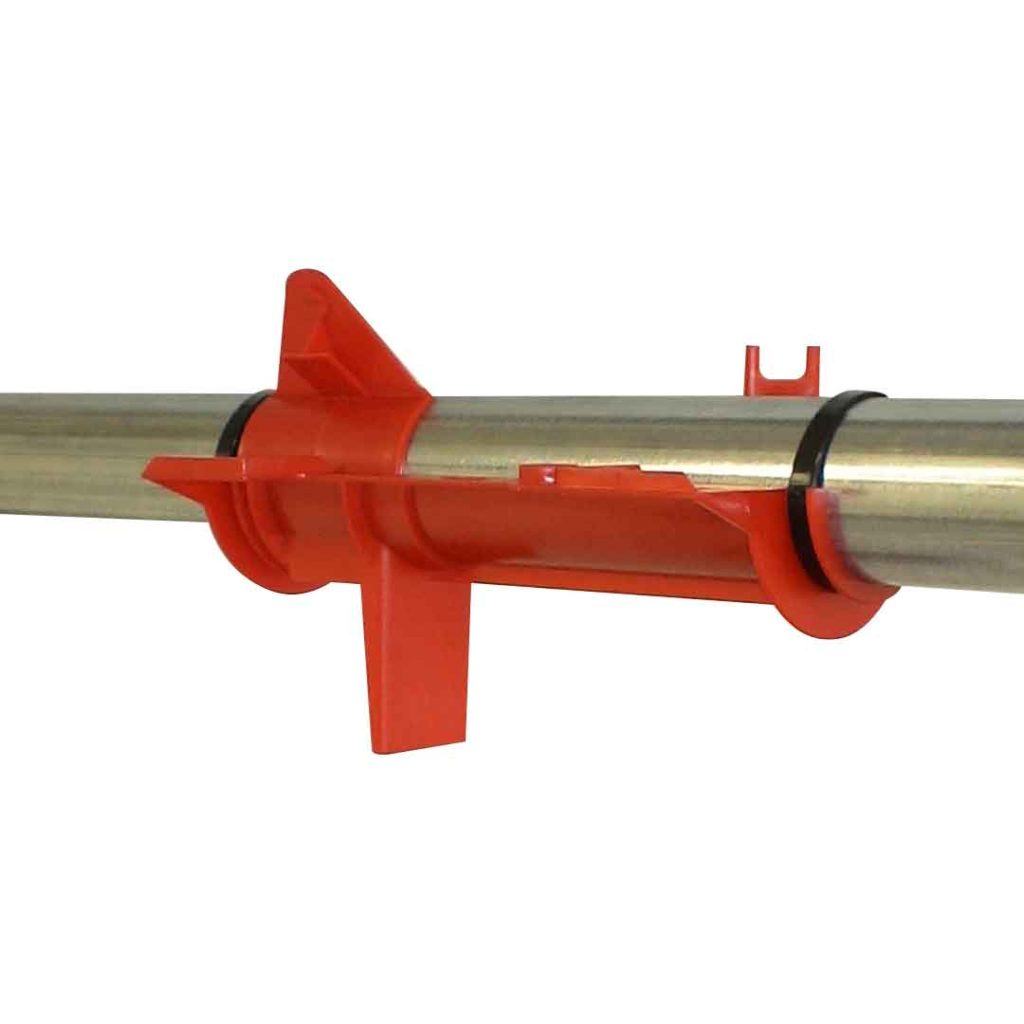

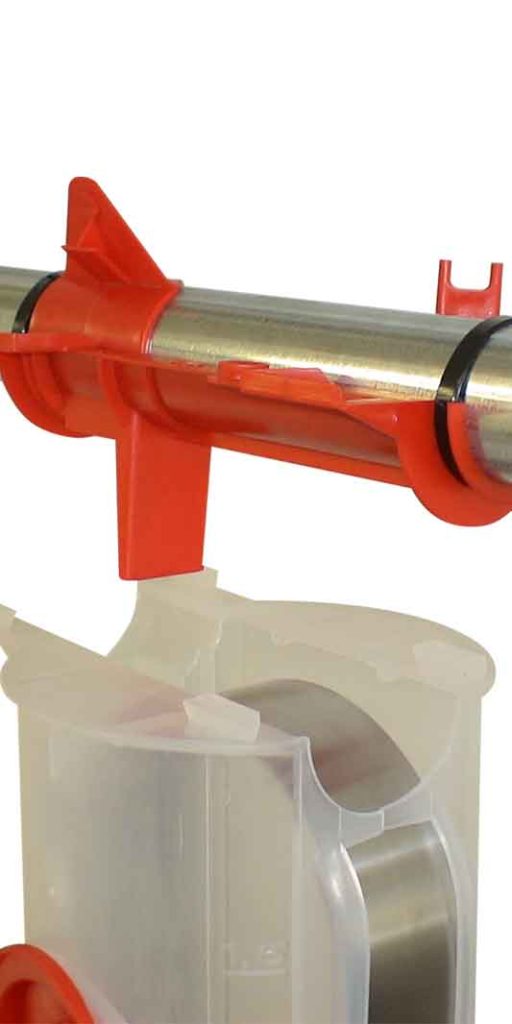

Fast coupling and release of the dispenser to the feed line.

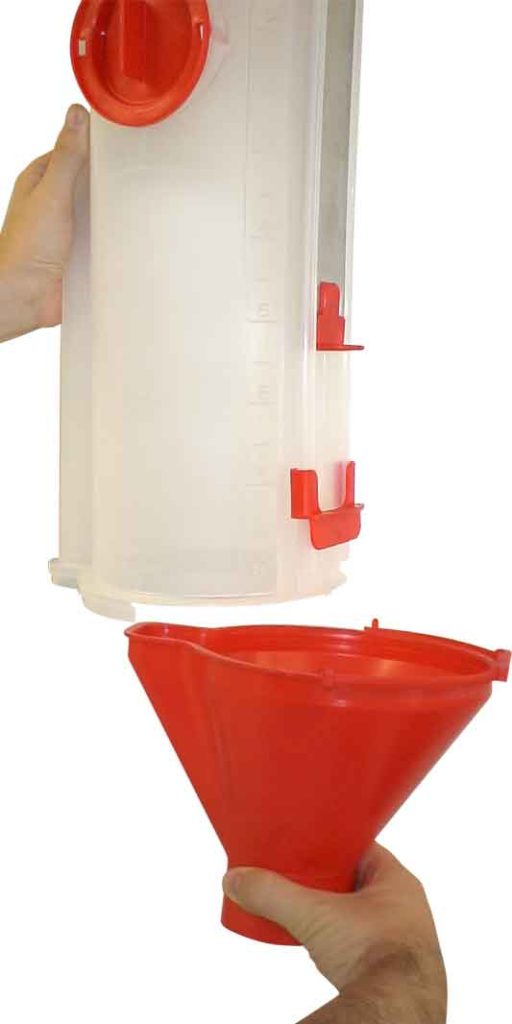

Simple release of the funnel by means of one fixing/release latch.
