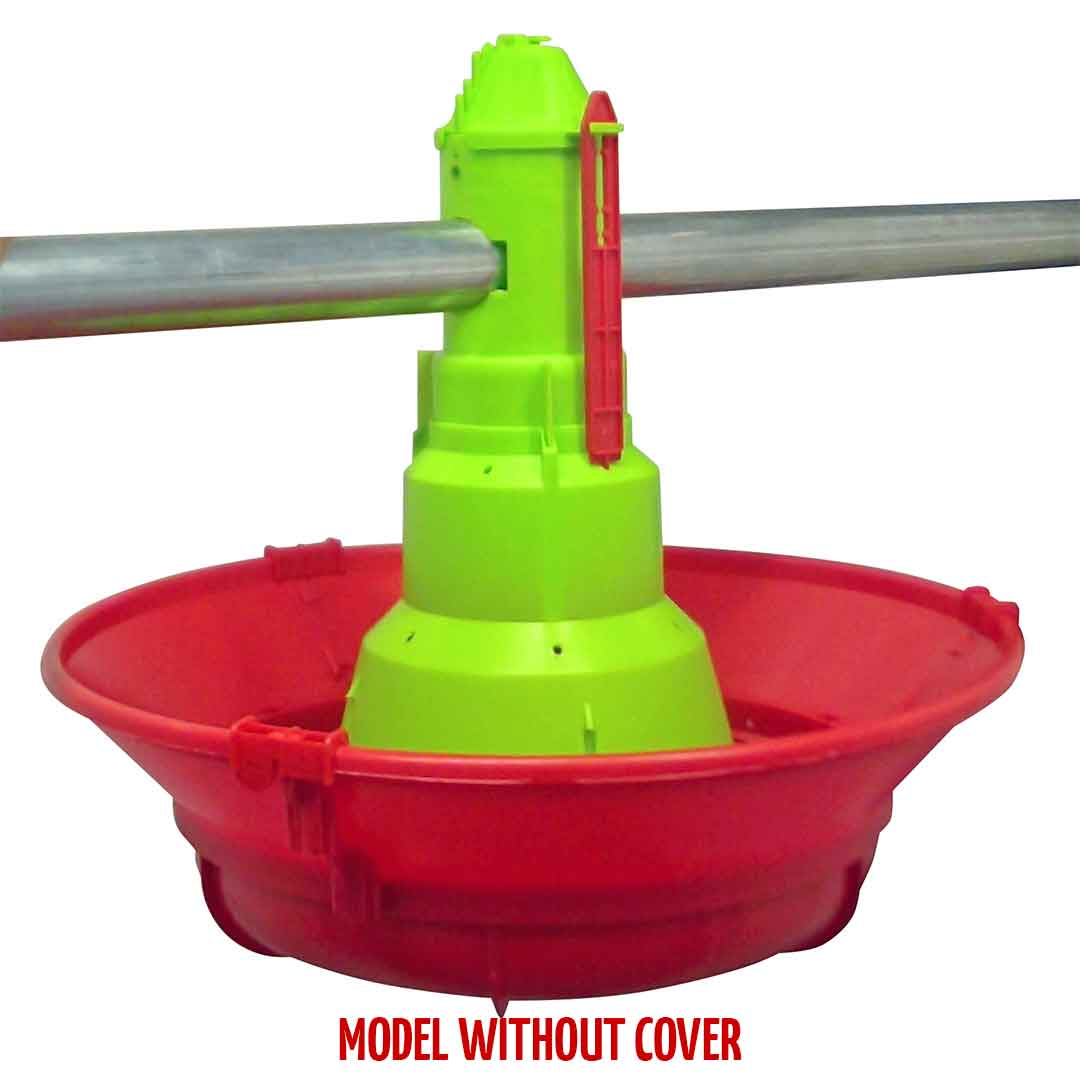

Modula

The sturdy turkey feed pan

Sturdy and easy to manage. Designed from one-day old chicks to heavy and nervous male turkeys.

  • Safe and fast assembly/ disassembly of the anti- waste ring for first and second phase without tools;
  • No chick inside the pan;
  • Transparent anti-chick ring for better view of the feed. It can be used as a cap;
  • Easy washing of any inner and outer component.

Product suitable for:

  • Turkeys

Technical data

Capacity for adult birdsBottom pan diameter
about 55 - 6540 cm (1°period) - 52 cm (2°period)
Bottom pan heightAvailable for tube
8,5 cm (1°period) - 17 cm (2°period)Ø 45 - 48 mm

The correct position for each growing phase

First days with anti-chick ring
First days with anti-chick ring
First phase with maximum feed
First phase with maximum feed
Young birds with minimum feed
Young birds with minimum feed
Adult birds with anti-waste ring
Adult birds with anti-waste ring

Easy to manage

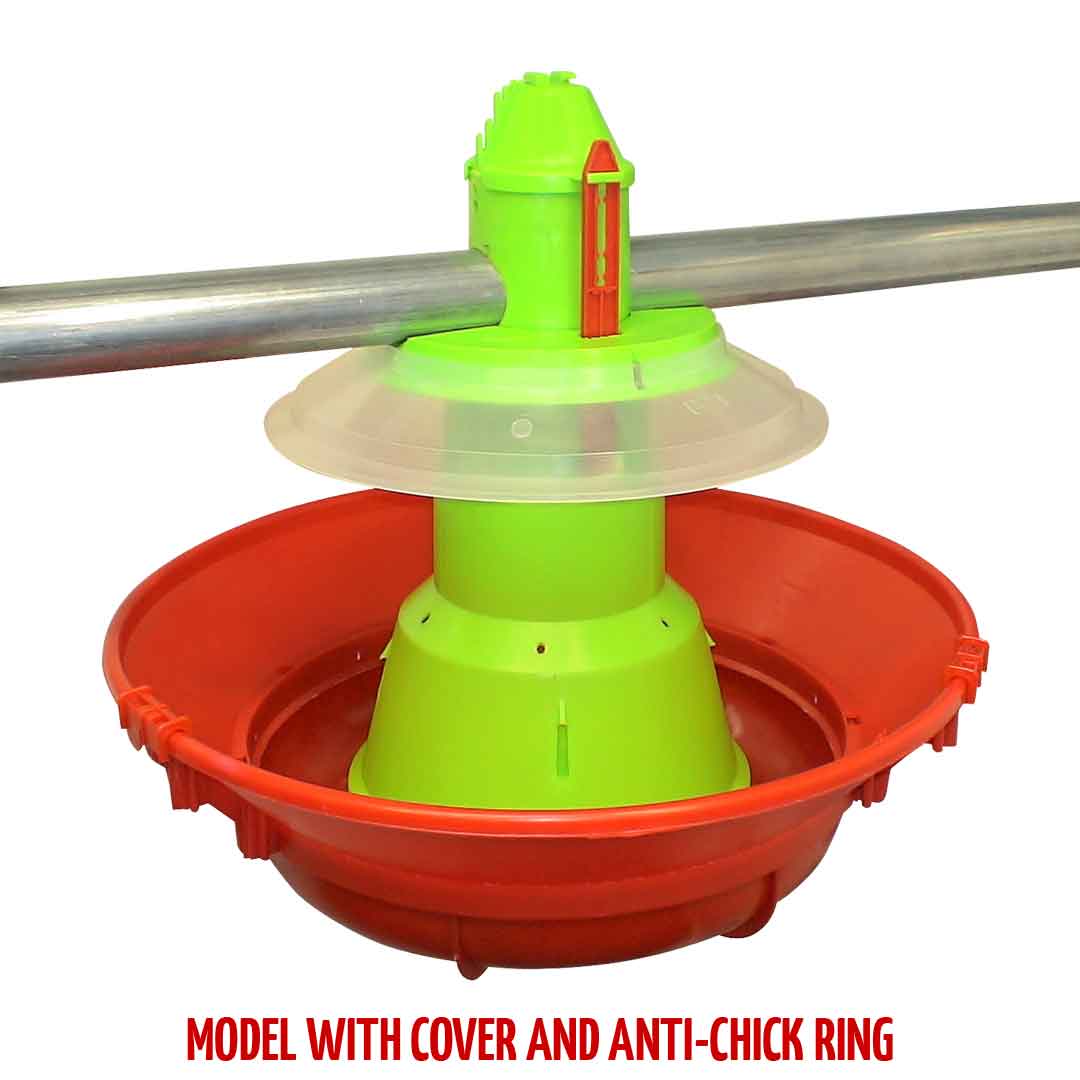

Anti-chick ring
Anti-chick ring
First days
First days
Safe and fast assembly
Safe and fast assembly
Bottom removal easy to clean
Bottom removal easy to clean
Easy adjustment
Easy adjustment

Main features

Sensor limit switch easy to remove
Sensor limit switch easy to remove
Micro limit switch
Micro limit switch
Cleaning position to safe space
Cleaning position to safe space - Turn 90°and move to the right or to the left (approx. 5 cm) to SELF-LOCK
Disassembling support (optional)
Disassembling support (optional)
Sturdy support
Sturdy support
