Flex Auger Feed Systems – Efficient Spiral Conveying Solutions

Description

System type	Max. circuit length	Max. capacity	Motor kW
Ø 48 mm	180 m	400 kg	0,55
Ø 60 mm	120 m	600 kg	0,55
Ø 75 mm	90 m	1000 kg	0,55 - 0,75
Ø 90 mm	70 m	2000 kg	0,55 - 0,75
Ø 125 mm	50 m	4500 kg	0,75

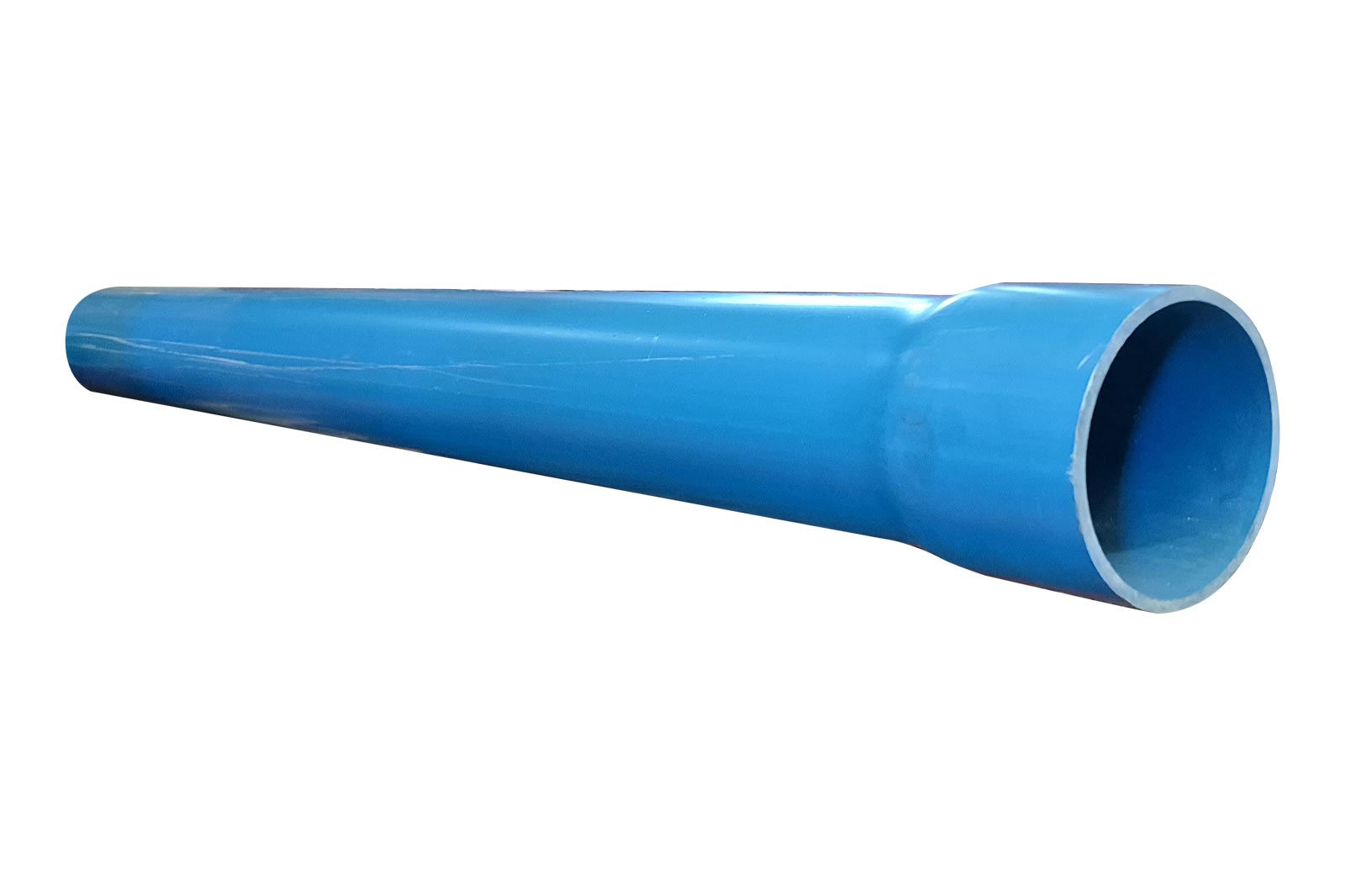

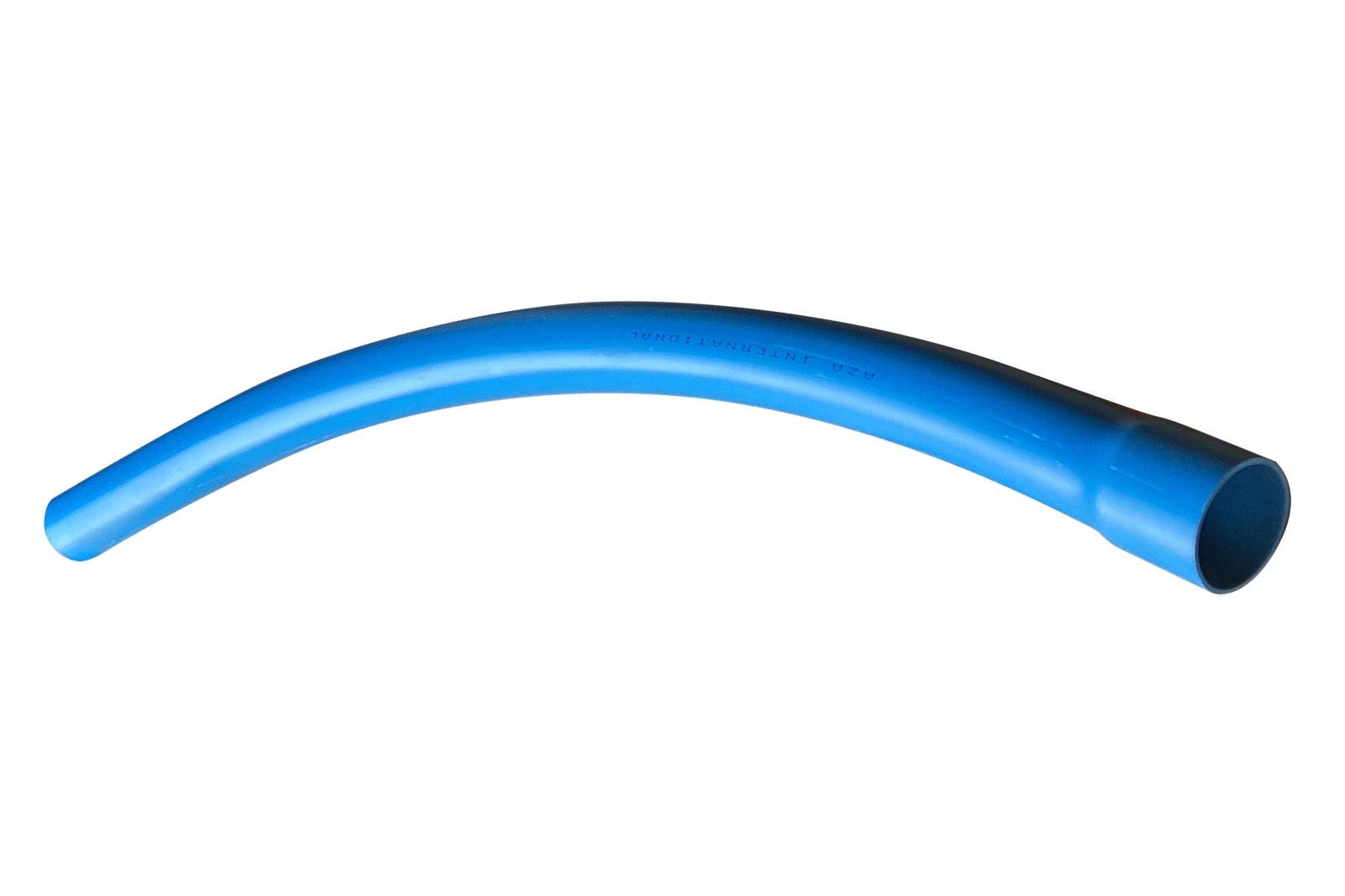

Pipes and curves for AZA’s flex auger systems are manufactured from first quality PVC and come with a funnel for easy pipe coupling.

SPIRAZA ST series

Manufactured from stainless steel, SPIRAZA drive units are available in Ø 48,60,75, 90 and 125 mm.

They are fitted with 2 safety devices that meet or exceed CE standards.

Model	Weight*	Dimensions A - B - C	kW
ST 48 - 60 - 75 - 90 - 125	18 kg	720 - 225 - 370 mm	0,55 - 0,75

* model with motor

Gruppo di traino SPIRAZA PLT per avicoli

SPIRAZA PLT poultry series

The SPIRAZA drive
units for poultry are manufactured from stainless steel and first quality plastic material which make this product extremely functional and price competitive.

They are available in Ø 48 and 60 mm.

Model	Weight*	Dimensions A - B - C	kW
Ø 48 mm	13,4 kg	580 - 470 - 250 mm	0,55
Ø 60 mm	13,4 kg	580 - 470 - 250 mm	0,55

* model with motor

SPIRAZA st steel series

SPIRAZA hoppers are bigger than any other hopper in the market and come with an adjustable spring loaded agitator plate to improve feed flow.

Manufactured from stainless steel, they can be assembled both on one or two ways silo bunkers with either straight or inclined adjuster, and on additional hoppers inside poultry houses.

They are available for one or two feeding lines as terminal with ball bearing hoppers and also in a straight through version for
tubing Ø 48, 60, 75, 90 and 125 mm.

Model	Tube	Weight	Dimensions A - B - C - D - E
1 way	Ø 48 - 60 - 75 - 90 - 125 mm	13 kg	360 - 360 - 300 - 395 mm
2 ways	Ø 48 - 60 - 75 - 90 mm	18 kg	360 - 610 - 300 - 395 - 650 mm

Loading hopper with one-way silo connection

Loading hopper with two-way silo connection SPIRAZA ST/PLT series

SPIRAZA st.steel/PLT series

The stainless steel/plt loading hoppers represent the best relationship between price and
quality.

Manufactured from first quality plastic and stainless steel, they can be assembled on both the one or two ways plastic silo bunkers with either straight or inclined adjuster, and on additional hoppers inside poultry houses.

They are available for one or two feeding lines as terminal with ball bearing hoppers and also in a straight through version for tubing Ø 48, 60, 75 and 90 mm.
