Self-dosy

Self-dosy - Image 2

Self-dosy

The simple and innovative system for rooster

Fully automatic pan.
No weighing scale required everything is done by the self-dosy pan.

Centralised opening for the simultaneous feed distribution in all the pans;
Winching not required while the pans are being filled;
Birds always quiet and possibility of preparing he next meal while feeding;
Sturdy, easy to manage and engineered for nervous birds;
Total and easy cleaning of any component of the pan.

Product suitable for:

Quantity of cocks per pan	Pan height	Bottom pan diameter MODEL N	Bottom pan diameter MODEL V
8 - 10	7,5 cm	40 cm	35 cm

Max. daily feed intake (grams/bird)	Average age at removal	Quantity standard for feed pan	Available for tubes
130 / 165gr	65 weeks	min 800g - max 1750g possibility to change	Ø (45) - 48 - 60 mm

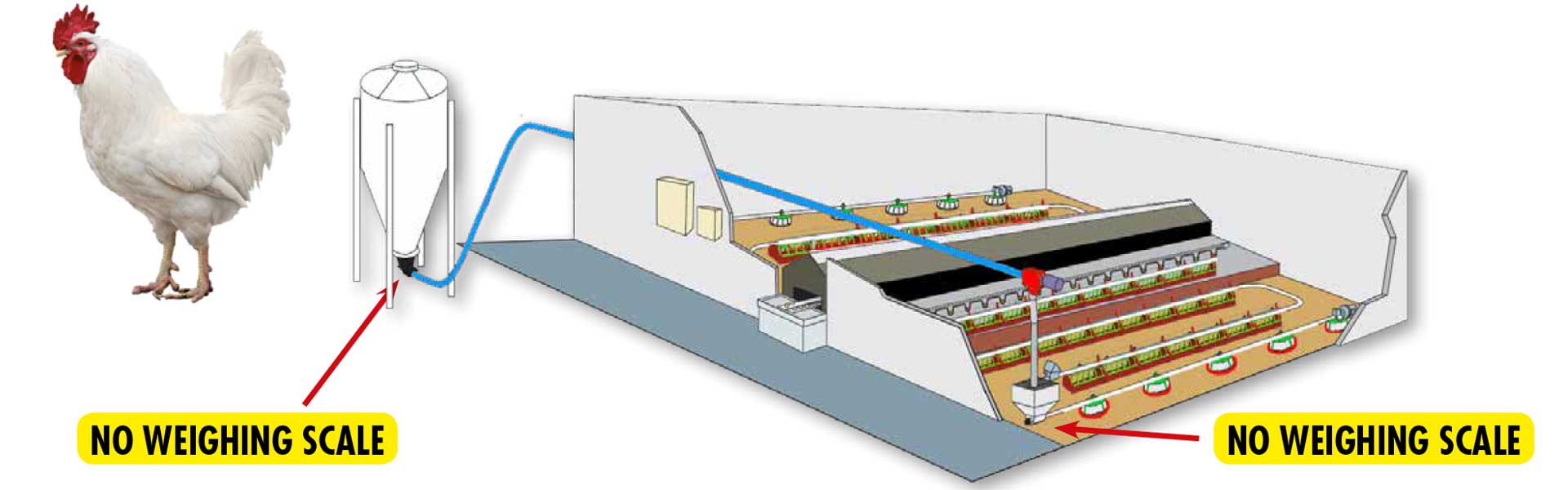

Self-dosy-completamente-automatica

Example : 80 kg of feed must be distributed throughout one line with 50 pans.
80 kg: 50 = 1,6 kg of feed per pan.
Adjust the feed volume at 1,6 kg with the winch.
Feed pans are filled according to the adjusted volume and the limit switch stops the line.
The automatic opening is used to drop simultaneously the feed in all the pans.

You may also like...

DUO System

Combined feeding and drinking system for broilers

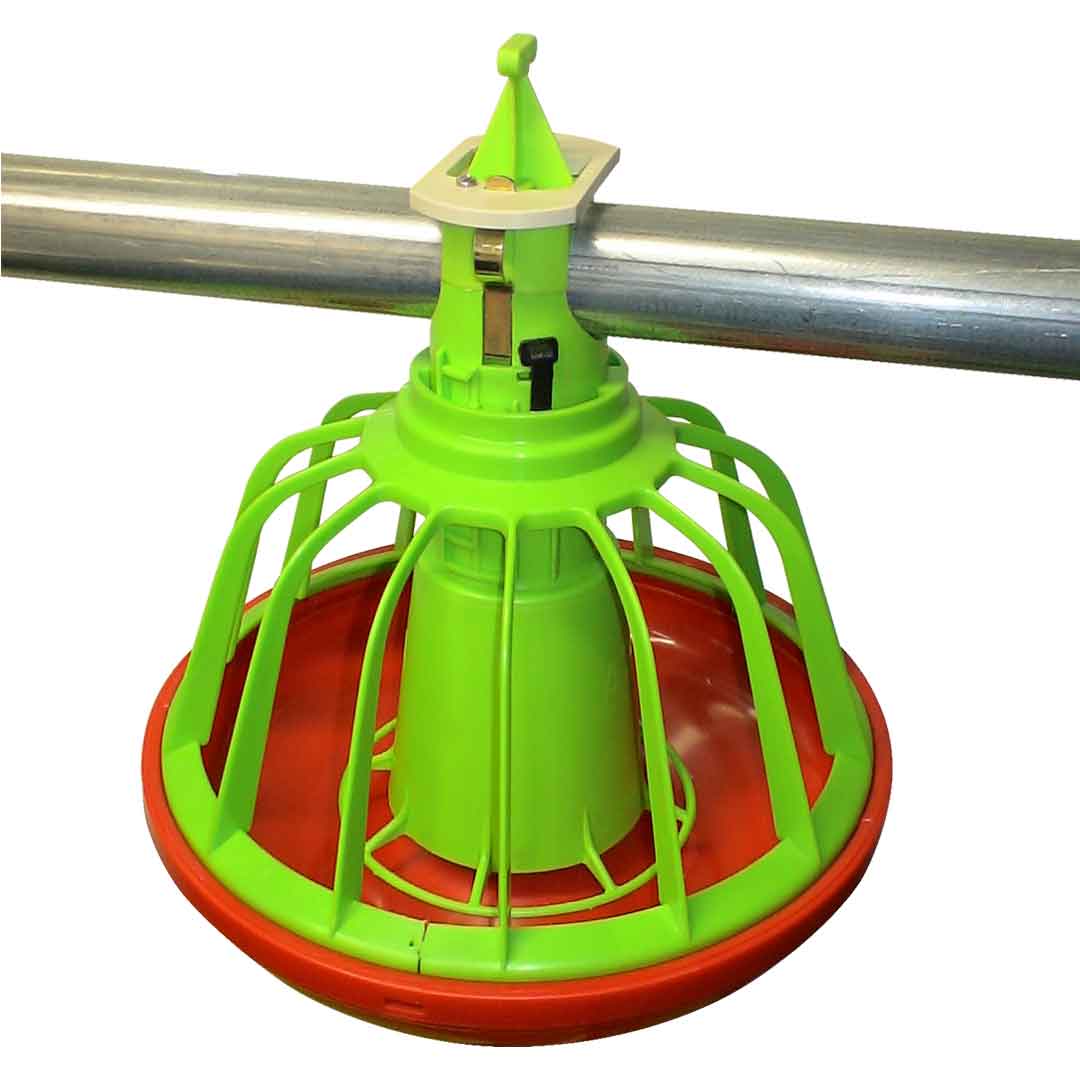

Flexa TWR pullets
